Explosion Proof Signalings

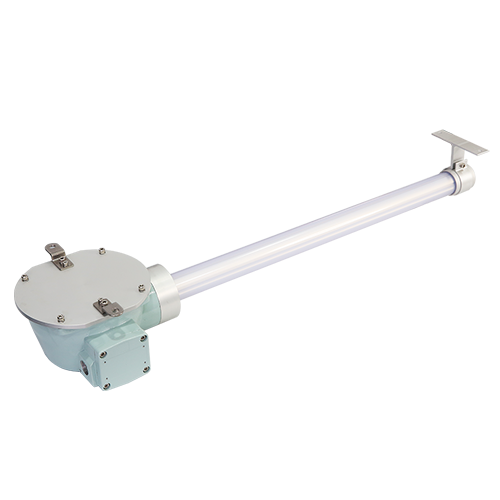

QLEX-SLM-650-EMG

QLEX-SLM-650-EMG

IP66-20℃ ~ +60℃
Explosion Proof LED Emergency Luminaires

Catalogue Viewer Product Inquiry
  • AC powered type LED light that is operated by battery in case of abrupt power outage or emergency
  • Rated AC power turns on Lighting as well as battery charging for emergency
  • Explosion proof LED lighting luminaires designed for use in explosive gas environments with Ex d IIC rating
  • Features special structure that allows to adjust light angle by turning the light tube
  • Fully enclosed structure allows outdoor application as it provides protection against dirt and water
  • Excellent visibility by emitting the LED light directly into user’s eyesight
  • Emergency battery hours : Max. 2.0HR (Battery capacity : 2,700mAh)
  • Battery charge time : Min. 12.5hours (discharge to full charge, based on 25 degree ºC)
  • Materials : Housing : Al, Upper cover : Al, Side cover : AI, Lens : PC, Bracket : AI
  • Certificates: KCs
  • Protection rating : Ex d IIC T6
  • Ambient operating temperature : -20°C ≤ Tamb ≤ + 60°C

Product Specifications

Optics Specifications
Model QLEX-SLM-650-EMG
Lens color Translucent
Light color Cool daylight
Color temperature 6,000-7,000 K
Luminous flux -
Illumination(at 1m) Min. 520Lux
Specifications
Rated voltage AC110V/230V
Range for operation voltage AC100V-240V
Power consumption 33W
Insulation resistance Min. 100MΩ(500V DC mega ohm meter)
Withstanding voltage AC:1,500V AC, 60Hz, 1minute
Protection rating IP66
Materials Housing : Al, Upper cover : Al, Side cover : AI, Lens : PC, Bracket : AI
Certificates
Weight(approx.) 4.5kg
