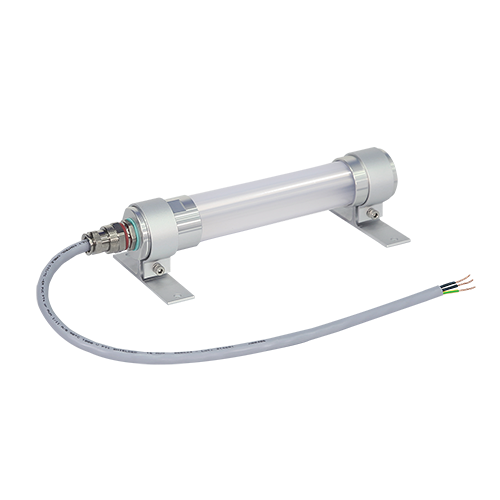

QLEX-NEC-250
Explosion Proof LED Luminaires / Work Light
- Product Feature
Illumination(at 1m) : 260Lux
- Voltage
DC:24V│AC:220V
- Dimension
105(W)×78(H)×250(L)
- Materials
Lens : PC │Bracket: Al
- Protection rating
IP66│IP67
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Explosion proof LED work light designed for use in explosive gas environ-ments with Ex d IIC rating
- Enhanced durability with aluminum housing and polycarbonate lens tube
- Slim and compact structure realize aesthetically pleasing design
- Semi-permanent service life with long-lasting LED light source
- Materials : Side cover-Al, Lens-PC, Bracket-Al
- Certificates : QPS(NRTL/CSA), CE
- Explosion protection rating :
CLASS 1, DIV 1, Group A,B,C,D, T6
CLASS 2, DIV 1, Group E,F,G - Protection rating : IP66/67 Type 4X
- Ambient operating temperature : –20°C ≤ Tamb ≤+ 60°C
Product Specifications
| Optics Specifications | |
|---|---|
| Model | QLEX-NEC-250 |
| Lens color | Translucent |
| Light color | Cool daylight |
| Color temperature | 6,000~7,000 K |
| Efficacy (lm/W) | 260lux |
| Specifications | |
| Voltage | DC24V |
| Rage of operation voltage | DC21.6V~26.4V |
| Power consumption | 8.6W |
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) |
| Withstanding voltage | DC:500V AC, 60Hz, 1minute |
| Waterproof | IP66/67 Type 4X |
| Materials | Side cover : Al, Lens : PC, Bracket : Al |
| Certificates | |
| Weight(approx.) | 0.65kg |
