Telephone initiated signaling
Copied to clipboard

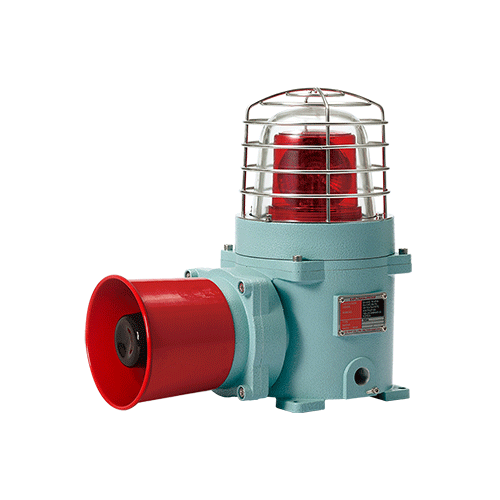

SESA-TI
- Product Feature
15 Built-in Sounds (Max.118dB at 1m), 5 Customizable voices (110-115dB at 1m)
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Length : 327
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Large explosion proof warning light and electric horn combinations
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- A variety of light sources and sound selections to fit your sophisticated application needs
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : AC25V to AC120V, Frequency 15-55Hz
- Excellent diffusion effect with special multifaceted reflector
- Revolving speed : 120-140RPM
- Sound volume : Max 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector for LED type-PC/Reflector for bulbt ype-Heat resistant ABS
- Certificates : IECEx, ATEX
- Protection rating : IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, IP66Product Specifications
| Model number | Voltage | Current | Bulb | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SESA-TI | DC24V | 1.45A | 24V15W | G23 15S | 18 | · WS-5 Warning sounds : Max.118dB · WP-5 Special warning sounds: Max.118dB · WM-5 Melodies : Max.118dB · WA-5 Alarms : Max.116dB · WV-5 Customizable voices : 110-115dB | | 8.57kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 370mA | 12V15W | G23 15S | 17 | 9.27kg | ||||
| AC230V | 190mA | 12V15W | G23 15S | 17 | |||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
|
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
|
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
|
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
|
| 5 Customizable voices | Customized sound |
