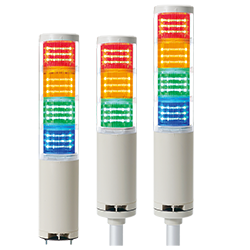

QT-ETN Series
| Product Image |
Model Number |
Type | Voltage | Dimension (mm) |
Materials | Protection rating |
Certificates |
|---|---|---|---|---|---|---|---|
 |
QT50L-ETN | LED Steady/Flashing Type Buzzer type(Max. 90dB at 1m), Sounder type(Max. 85dB at 1m) : optionally available |
DC:12V,24V | Diameter : Ø50 Height : 422-586 |
Lens-PC Housing-PC |
IP54 |  |
 |
QT50ML-ETN | LED Steady/Flashing Type Buzzer type(Max. 90dB at 1m), Sounder type(Max. 85dB at 1m) : optionally available |
DC:12V,24V | Diameter : Ø50 Height : 208-372 |
Lens-PC Housing-PC |
IP54 | |
 |
QT70L-ETN | LED Steady/Flashing Type Buzzer type(Max. 90dB at 1m), Sounder type(Max. 85dB at 1m) : optionally available |
DC:12V,24V | Diameter : Ø70 Height : 287-511 |
Lens-PC Housing-PC |
IP54 | |
 |
QT70ML-ETN | LED Steady/Flashing Type Buzzer type(Max. 90dB at 1m), Sounder type(Max. 85dB at 1m) : optionally available |
DC:12V,24V | Diameter : Ø70 Height : 148-372 |
Lens-PC Housing-PC |
IP54 | |
