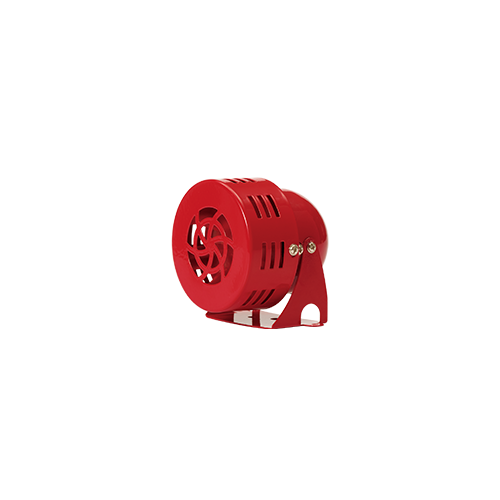

SM30
Max.110dB
- Product Feature
Моторная сирена (Max. 110dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø77 │Length : 82
- Materials
Корпус-Steel
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø80mm compact structure with 110dB sound output
- Motor RPM : 10,000RPM
- Housing standard color : Red
- Materials : Steel
- Insulation resistance : 100MΩ(at 500 VDC)
- Ambient operation temperature : -25°C to +50°C
Product Specifications
| Model number | Volume | Voltage | Current | Certificates | Weight | Rated time |
|---|---|---|---|---|---|---|
| SM30 | Max.110dB | DC12V | 5A | - | 0.22kg | 10 mins |
| DC24V | 3A | 0.22kg | ||||
| AC110V | 1.25A | 0.42kg | ||||
| AC220V | 750mA | 0.42kg |
