QAP/ADH Series
Copied to clipboard
S60ADH
Max.95dB
- Product Feature
Высокочастотный зуммер (Max. 95dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø75mm │Height : 158 │Depth : 86
- Materials
ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

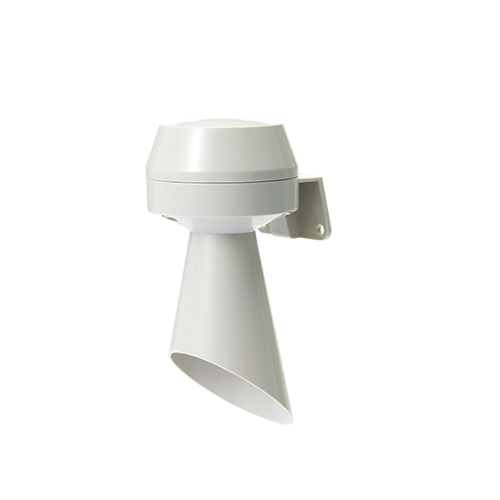

Product Feature- Elegant wall mounted buzzer horn
- Horn resonance structure gives the product low power consumption and high sound tone
- Cone sound diffusion structure provides wide & excellent signal sound transmission effect
- Sound volume : Max. 95dB at 1m
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Built-in Sound | Voltage | Current | Certificates | Weight |
|---|---|---|---|---|---|
| S60ADH | • Buzzer volume: Max.95dB | DC12V | 80mA | | 0.12kg |
| DC24V | 40mA | 0.12kg | |||
| AC110V | 10mA | 0.12kg | |||
| AC220V | 10mA | 0.12kg |
Pre-recorded sound | Sound pattern | Ch | Volume |
|---|---|---|---|
1 Buzzer tone | Dududu(Consecutive) | Ch1 | Max.95dB |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 1 Buzzer Sound | Turu~ Continuous |
