S Series (Ø50-80)
Copied to clipboard
S80R
Max.90dB
- Product Feature
Volume de campainha do tipo fixo (Max. 90dB at 1m) : disponível opcionalmente
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø80(Approx.) │Height : 131
- Materials
Lente-AS │Estrutura-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

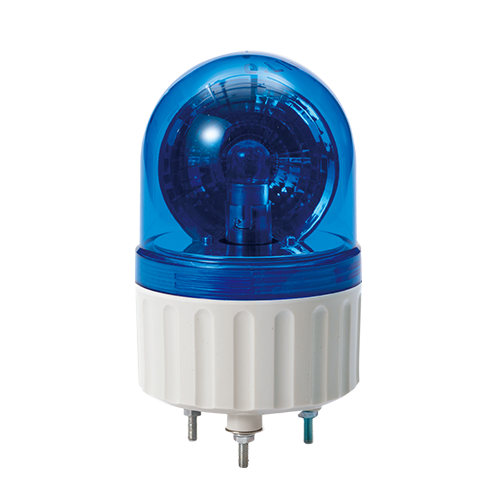

Product Feature- Ø80mm bulb revolving warning light
- Adopts a special power transmission system that reduces noise and wear
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S80R | DC12V | 530mA | 12V5W | T16x35 15S | 5 | | 0.28kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 370mA | 24V5W | T16x35 15S | 6 | 0.28kg | |||
| AC110V | 80mA | 12V5W | T16x35 15S | 5 | 0.48kg | |||
| AC220V | 40mA | 12V5W | T16x35 15S | 5 | 0.48kg | |||
※ CE compliant: DC12V, DC24V
