Features

• Ideal solution for building smart factories with state of the art technology

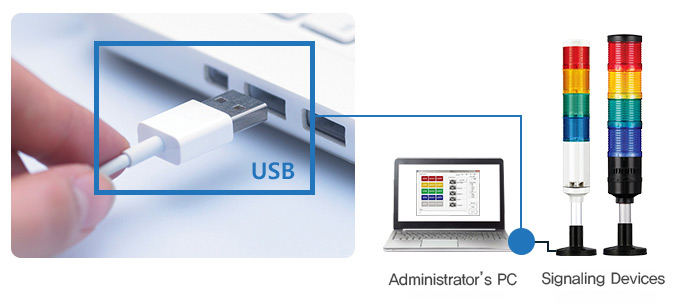

• LED tower light that is fully controlled by a PC application via USB port connection
• Possible to use USB cable connection without an additional power supply

Main characteristics

• Provides MS Runtime libraries for developers to utilize in various PC applications
• Controlled by PC application
• LED Module Standard Operation: 2 layers will operate at the same time.
• 5 built-in Buzzer tones available
• USB communication cable is comprised of VCC, D-, D +, GND, and shield
• Compliant with RoHS directive

Operational environment

• OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
• Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)
• Support host that is USB 1.1 or higher
• Power supply : DC 5V/500mA rated PC USB * 2 ports are required
• Multiple connections on 1 PC is optionally available (up-to 4 units).

※ The Y cable included with the product has a communication and power connection.

※ Multiple LED modules operate within the current range of USB port current coverage.
