QAP/ADH Series
Copied to clipboard

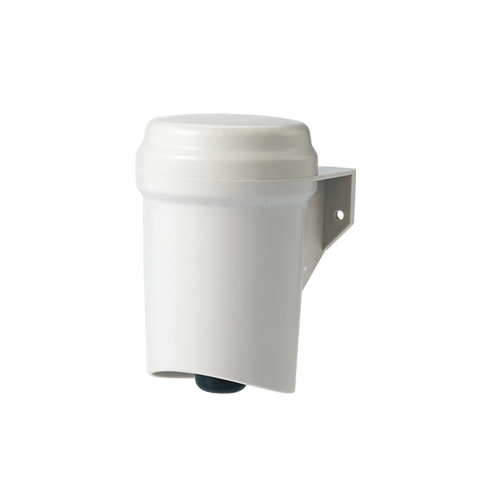

QAP80H
Max.100dB
- Product Feature
30 sons pré-programados (Max. 100dB at 1m)
- Voltage
DC:12V-24V
- Dimension
Diameter : Ø83mm │Height : 129 │Depth : 93
- Materials
ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal sound diffusing structure with wall mount supports 30 Built-in sounds
- Volume control and tone selector switches are installed inside the unit
- This product has 30 Built-in sounds via binary input mode or bit input mode
- Binary input mode allows the user to select from 30 different sound options with the tone selection switch
- Bit input mode is organized into 6 groups of 5 sound tones for a total of 30 sound tone options. Playback can be selected from one of the 5 tones in each group
- Built-in Sound
- Materials : Housing-ABS, Resonance chamber-ABS
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP65
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Built-in Sound and dB | Certificates | Weight |
|---|---|---|---|---|---|
| QAP80H | DC12V-24V | Max.850mA | · Bit Input: 5Ch · Binary Input: 30Ch · Built-in volume: Max.100dB (Based on WM-Ch4) | | 0.51kg |
※ DC type model has a free-voltage range of 12V-30V.
※ Please refer to [Sound tone and combination for standard product] on this catalogue for detailed sound tone specification
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG |
||
| 5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren |
