QWH Series
Copied to clipboard

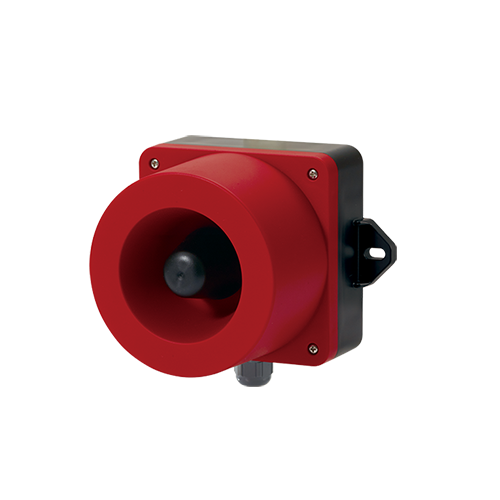

QWH35B
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
□136×179 │Depth : 128
- Materials
Horn-PC+ABS │Body-PC+ABS
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- High volume type
- Suitable for use in environments that require a tight seal and superior dust protection rated IP66
- Ambient operating temperature : -30℃~+50℃(Normal type/buzzer type)
- Cable entry : PG13.5
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Weight | Weight |
|---|---|---|---|---|---|
| QWH35B | DC12V | 385mA | • Buzzer Volume : Max.115dB | | 0.70kg |
| DC24V | 365mA | 0.70kg | |||
| AC110V-220V | Max.145mA | 0.81kg |
※ UL Listed: DC12V-24V
