QTG60L-WV

QTG/QTGA Series Copied to clipboard

QTG60L-WV

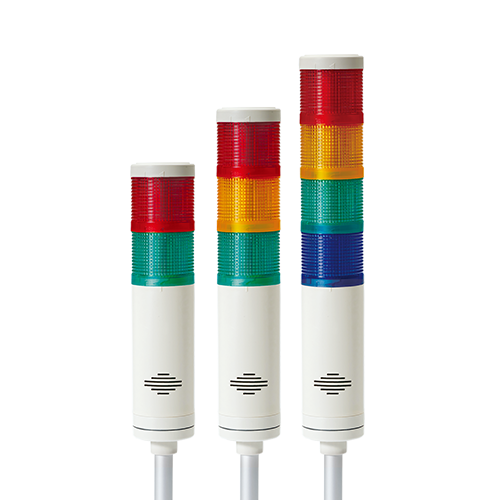

60mm outer diameter built-in signal sound modular tower lamp with Max.85dB
IP23-30℃ ~ +50℃Buzzer80dB85dBRoHSNPN-Transistor Type
  • Voltage

    DC:24V

  • Dimension

    Diameter : Ø60 Height : 425 - 625

  • Materials

    Lens-PC Housing-ABS Pole-Al

  • Protection rating

    IP23

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Modular steady type signal tower lights
  • Excellent visibility from a distance with the use of a special color diffusing lens
  • The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
  • QTGA type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
  • Volume output: Volume Max.85dB at 1m
  • Can be used with NPN open collector transistor driven input, which allows direct connection to a PLC
  • Materials : Lens-PC, Housing-ABS, Pole-Al
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP23
  • Certificatess : CE Compliant
  • Compliant with RoHS directive

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberLayer
Voltage
Sound Pattern and Volume
Certificates
Weight
Color
QTG60L-WV1DC24V31 Customizable voices: 80dB-85dB


0.53kg
 R-Red
20.58kg
R-Red
  G-Green
30.63kg
R-Red
 A-Amber
 G-Green
40.68kg
R-Red
 A-Amber
 G-Green
 B-Blue
50.73kg
R-Red
 A-Amber
 G-Green
 B-Blue
 W-White

※ In case of customized WV 31 tone type, there may be difference of volume depending on user’s audio file type.




Light source/signal sound current (based on 1 layer)


Voltage
DC24V
Light source current(1 layer)
70mA
Signal sound current
160mA
