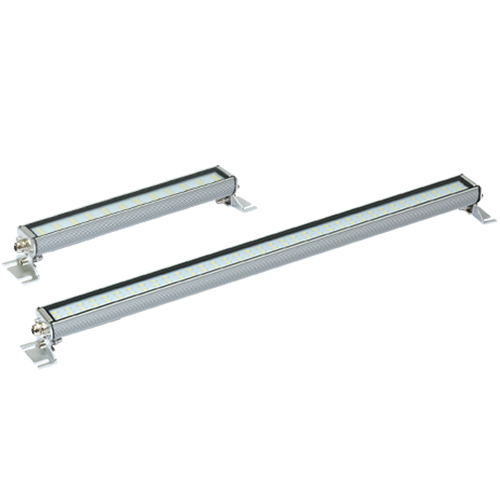

EBL Series Copied to clipboard
EBL
- Product Feature
Illumination(at 1m) : DC- 700Lux,AC- 300Lux
- Voltage
DC:24V│AC:220V
- Dimension
45(W)×50(H)×314-618(L)
- Materials
Lens-Tempered glass │Housing-Al │Bracket-Al
- Protection rating
IP67
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Waterproof, dustproof, oil-resistant LED economy type work light
- Excellent oil resistance in machine tools where high-temperature cutting oil is used
- Low power consumption and long life by using high-efficiency LED
- Among body lengths of 300/500/600mm, select a suitable specification according to the lighting range and installation space
- 1.5m cable withdrawal type is standard specification, M12 connector mounting type can be selected as an order specification
Product Specifications
Optics specifications | |||||
---|---|---|---|---|---|
Model | EBL300 | EBL500 | EBL600 | ||
Lens color | Translucent | ||||
Light color(Standard) | Cooldaylight | ||||
Color temperature(Standard) | 6,000~6,500K | ||||
Luminous flux | DC | - | 1,500lm | 1,800lm | |
AC | 1,000lm | - | - | ||
Illumination(at 1m) | DC | - | 700Lux | 700Lux | |
AC | 300Lux | - | - | ||
Specifications | |||||
Model | EBL300 | EBL500 | EBL600 | ||
Rated voltage | AC220V | DC24V | DC24V | ||
Range for operation voltage | AC200~240V | DC24V | DC24V | ||
Power consumption | DC24V | - | 15W | 18W | |
AC220V | 10W | - | - | ||
Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) | ||||
Withstanding voltage | DC: 500VAC, 60Hz, 1 minute/AC: 1,500VAC, 60Hz, 1 minute | ||||
Operating temperature | -25℃ ~ +55℃ | ||||
Waterproof | IP67 | ||||
Materials | Housing-Al, Lens-Tempered glass, Bracket-Al | ||||
Certificates | | ||||
Weight(approx.) | 0.50kg | 0.70kg | 0.80kg |
※ CE compliant : DC24V
