QST50-Ex Series
Copied to clipboard

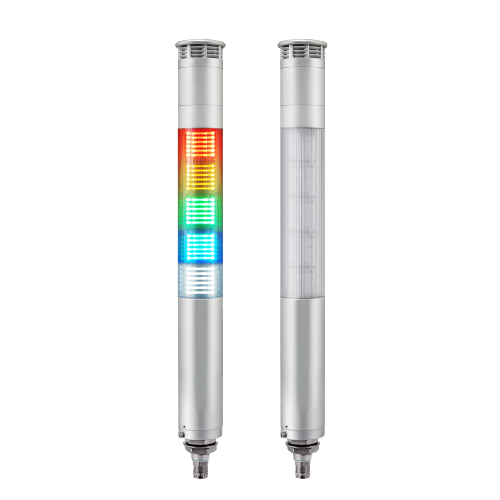

QST50BM-Ex
- Voltage
DC:24V│AC:110V-230V
- Materials
Lens-PC │Diffusion Lens-PC │Housing-Al │Cover-Al
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ex db IIC T6 Gb rated pressure dust explosion-proof LED tower light for use in explosive gas areas
- Excellent long-distance visibility by applying a special light diffusion tube that condenses LED light
- Aluminum housing provides excellent durability
- Semi-permanent service life with long-lasting LED light source
- Materials : Lens-PC, Diffusion Lens-PC, Housing-Al, Cover-Al
- Ambient operating temperature : -40℃ ≤ Tamb ≤ +60℃
- Sound Volume: Max. 90dB at 1m(Built-in buzzer type)
- Certificates : IECEx, ATEX, KCs, CCC
- Protection rating:
IECEx - Ex db IIC T6 Gb, Ex tb IIIC T85℃ Db
ATEX - II2G Ex db llC T6 Gb, ll2D Ex tb llC T85℃ Db - Housing standard color : Silver
- Cable Entry : M12 or M16xP1.5
- Flashing rate : 60-80 flashes/min
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QST50BM-Ex | 5 | DC24V | | 1.39Kg |  R-Red A-Amber G-Green B-Blue W-White |
| AC110V-230V |
Light source/buzzer current(based on 1 layer)
Voltage | DC24V | AC110-230V |
|---|---|---|
Light source current(1 layer) | 75mA | Max.55mA |
| Buzzer current | 50mA | Max.40mA |
