SW2TS Series
Copied to clipboard

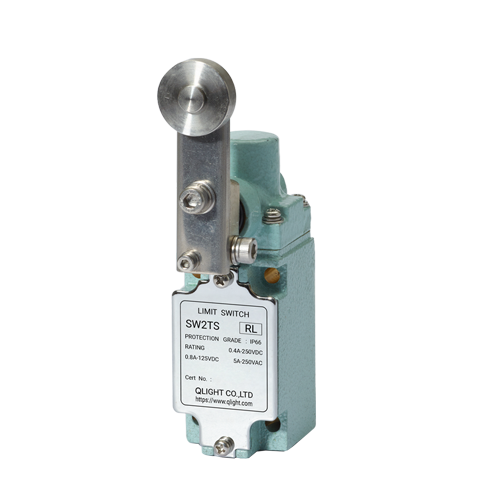

SW2TS-RL
- Product Feature
Roller Lever Type
- Dimension
43(W)×51.3(H)×160.5(L)
- Materials
Body, Head, Bolt & Nut, Roller, Spring Rod-Stainless Steel
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Robust structure featuring a body and head made of STS316L stainless steel, offering exceptional corrosion and salt resistance, ideally suited for marine and chemical gas environments
- Stable operational characteristics maintained even after prolonged use, achieved through our proprietary dual-return spring system
Superior corrosion resistance demonstrated in harsh polar and offshore conditions by employing stainless steel (STS) external bolts, nuts, and components
Reliable performance in extreme low-temperature environments ensured by cold-resistant micro switches, low-temperature grease, and silicone packing
Heavy-duty specifications with identical mounting holes and external dimensions as standard switches
Typical applications: Overhead cranes, large-scale conveyors, heavy industrial machinery, Outdoor plant facilities, ship deck machinery, port cargo handling equipment, Chemical plants with corrosive acidic or alkaline gases present
Customizable low-temperature type (-40℃ to +40℃) and high-temperature type (+50℃ to +120℃) available upon request
Product Specifications
| Protection Grade | IP66 | |
|---|---|---|
| Mechanical Life | Over 2 million operations | |
| lectrical Life | Over 0.2 million operations | |
| Allowable Operating Cycle | Mechanical | 120 Operations per minute max. |
| Electrical | 30 Operations per minute max. | |
| Insulation Resistance | 100MΩ min. at 500V DC | |
| Initial Resistance | 50mΩ max. | |
| Dielectric Strength | Between Non-continuous Terminal | 1,000V AC, 50 to 60Hz for 1minute |
| Between Each Terminal and Non-conducting Metal Part |
2,000V AC, 50 to 60Hz for 1minute | |
| Shock Resistance | Destruction | approx. 1,000m/s², 100G |
| Malfunction | approx. 250m/s², 25G | |
| Vibration Resistance | 10 to 55Hz 1.5mm double amplitude(Double Amplitude) | |
| Allowable Operating Temperature Range | -10°C to +55°C -40°C to +40°C(Cold-Resistant Type) +50°C to +120°C(Heat-Resistant Type) |
|
| Ambient Humidity Range | 45 ~ 85% RH | |
| Certificate | ||
| Inrush current | NC(normally closed) | Max. 20A |
|---|---|---|
| NO(normally opened) | Max. 10A |
1. The figures in the diagram present normal current
2. The inductive load has a power factor of 0.4 or higher (AC) and a time constant of 7 ms or less (DC)
3. The lamp load is assumed to have 10 times the inrush current.
4. The motor load current is assumed to have 6 times the inrush current.
