S100D/S125D/STD Series
Copied to clipboard

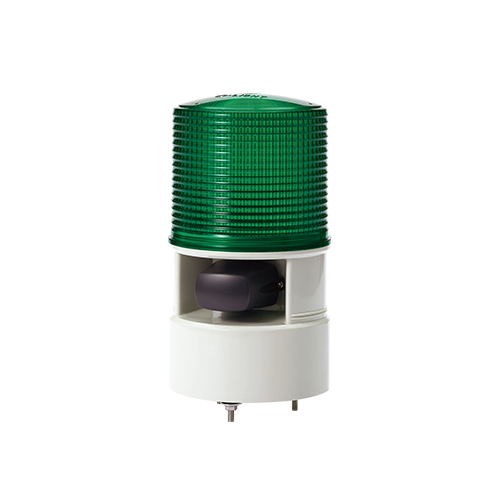

S125DL
Max.105dB
- Product Feature
15 sonidos integrados (Max. 105dB at 1m), 5 voces definidas por el usuario (Max. 95dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø115 │Body Diameter : Ø119 │Height : 215
- Materials
Lente-AS │Carcasa-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø125mm Signal Light and Electric Horn Combination provides both audible and visual signaling capability in one unit
- Can select the proper signaling from a variety of light source and sound tone
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Flashing rate : 60-80 flashes/min
(Built-in switch for selection between steady and flashing mode) - Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| S125DL | DC12V-24V | Max.520mA | • WS-5 Warning sounds: Max.105dB • WM-5 Melodies: Max.105dB • WA-5 Alarms: Max.103dB • WV-5 Customizable sounds: 91-100dB | | 0.76kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 135mA | 1.16kg | ||||
| AC220V | 70mA | 1.16kg |
• Flashing rate: 60-80/min (Built-in switch for selection between steady and flashing mode)
• Ambient operating temperature: -30°C to +50°C
※ CE compliant: DC24V, AC110V, AC220V
※ Max.built-in volume feature is based on WS-Ch3 / WM-Ch4 / WA-Ch1.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
