QAP/ADH Series
Copied to clipboard

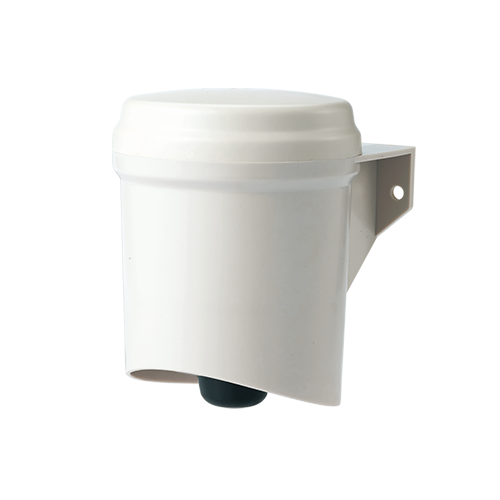

QAP125BZ
Max.105dB
- Product Feature
Zumbador alto (Max. 105dB at 1m)
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø116mm │Height : 149 │Depth : 132
- Materials
ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal sound diffusing structure with wall mount
- Buzzer type siren horn supports Max. 105dB
- Materials : Housing-ABS, Resonance chamber-ABS
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP65
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Built-in Sound and dB | Certificates | Weight |
|---|---|---|---|---|---|
| QAP125BZ | DC12V | 250mA | · Buzzer Volume: Max.105dB | | 0.75kg |
| DC24V | 185mA | ||||
| AC110V-220V | Max.100mA | 0.78kg |
※ AC type model has a free-voltage range of 100V-240V.
