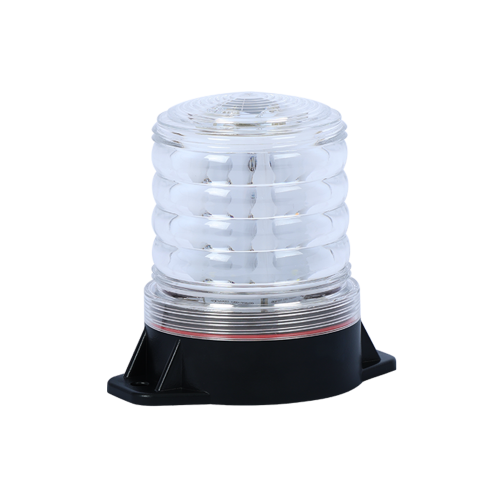

S80NL
- Voltage
DC:12V-24V
- Dimension
Lens Diameter : Ø83(Approx.) │Height : 111
- Materials
Lens-PC │Housing-ABS+GF
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

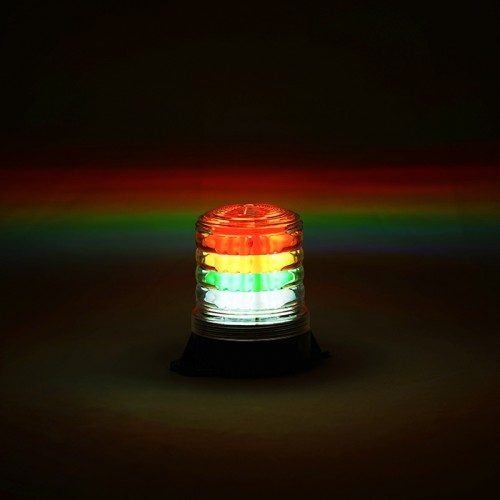

Product Feature- Ø80mm LED Steady Signal Lights
- Compliant with international standard (ISO 18497 - Safety principles for the design of automated agricultural machinery)
- LED light source provides excellent durability in environments with severe vibration and impact such as conveyor systems and agricultural machinery

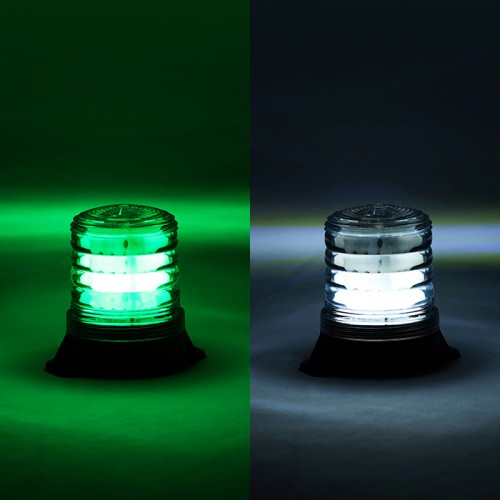

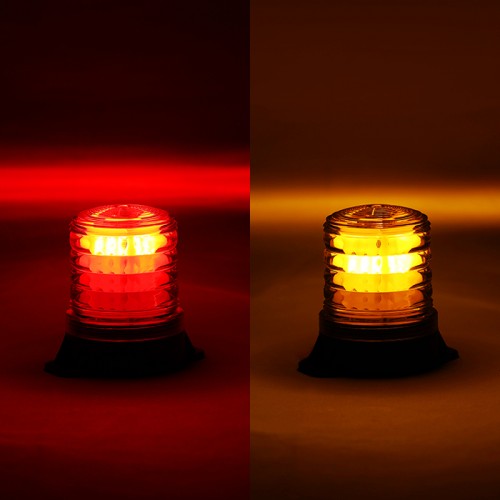

- Each LED layer displays a single color (red, amber, green, or white) according to the equipment operating status
- Standard Color Configuration (4-Tier Fixed Arrangement)
1 Tier:
R-Red
2 Tier:
A-Amber
3 Tier:
G-Green
4 Tier:
W-White - Clear color indication through the application of a light-shield structure for each tier
- Powerful LED signal light emission through a convex lens structure
- Adopts an excellent light distribution structure for high visibility in bright environments
- Ambient operating temperature -30°C to +50°C
Product Specifications
| Model number | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|
| S80NL | DC12V-24V | | 0.50kg | R-Red A-Amber G-Green W-White |
Light source current(based on 1 layer)
Voltage | DC12V | DC24V |
|---|---|---|
Light source current(1 layer) | Max.240mA | Max.120mA |
