QELT-UL Series
Copied to clipboard

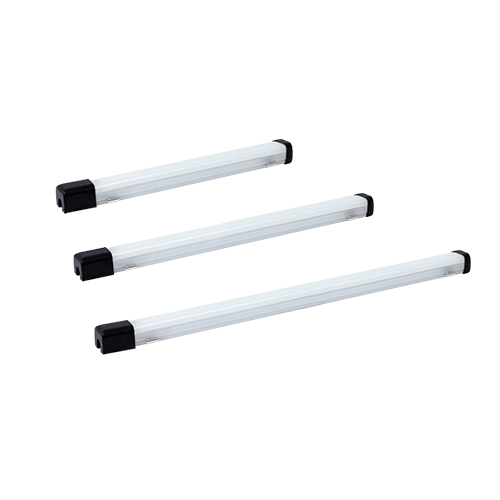

QELT-UL
- Product Feature
Illumination(at 1m): 95-335lux
- Voltage
AC:110V-120V
- Dimension
34.6(W)X30.7(H)X249~549(L)
- Materials
Lens : PC │Side cover : ABS │Bracket : STS201
- Protection rating
Non-Waterproof
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Wide direct light distribution for high illumination in the distribution panel
- Built-in terminal allows easy wiring
- LED direct AC connect system, no need other power device
- 4 kinds of products length 200/300/400/500mm for each condition
- Removable mount bracket that adjust mount distance
Product Specifications
| Optics Specifications | ||||
|---|---|---|---|---|
| Model number | QELT-200-UL | QELT-300-UL | QELT-400-UL | QELT-500-UL |
| Directions | Translucent | Translucent | Translucent | Translucent |
| Light color | Cooldaylight | |||
| Color temperature | 6,000-7,000K | |||
| Luminous flux | 370lm | 780lm | 1,180lm | 1,310lm |
| Illumination(at 1m) | 95lux | 200lux | 300lux | 335lux |
| Specifications | ||||
| Model number | QELT-200-UL | QELT-300-UL | QELT-400-UL | QELT-500-UL |
| Voltage | AC110V-120V | |||
| Range for operation voltage | AC98V-132V | |||
| Power consumption | 5W | 9W | 13W | 15W |
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) | |||
| Withstanding voltage | 1,500VAC, 60Hz, 1minute | |||
| Operating temperature | -30℃-+50℃ | |||
| Protection rating | Non-Waterproof | |||
| Materials | Lens-PC, Side cover-ABS, Bracket-STS201 | |||
| Certification | | |||
| Weight(approx.) | 0.10kg | 0.12kg | 0.15kg | 0.17kg |
※ UL(RU Listed): AC110V-120V
