Q Series
Copied to clipboard

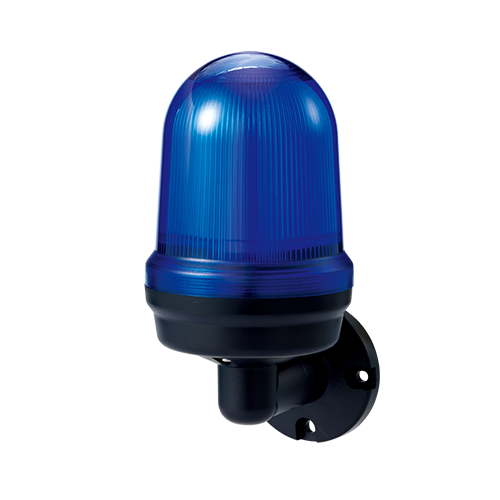

Q100LW
LED Steady/Flashing Signal
Max.80dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 80dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
Lens Diameter : │Ø100mm(Approx.) │Height : 173 │Depth : 121
- Materials
العدسات-PC │المبيت-ABS │حامل التثبيت-PC
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Standard-sized signal lights of Ø100mm with attractive appearance
- Wall mount type with the bracket equipped
- Features high visibility with special diffusive lens and direct LED light distribution system
- Built-in buzzer available (Volume : Max. 80dB at 1m)
- Built-in switches for steady and flashing light function mode
- Flashing rate : 60-80 flashes/min
- Materials : Lens-PC, Housing-ABS, Bracket-PC
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP65
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| Q100LW | DC12V-24V | Max.270mA | | Q100L-0.28kg Q100LW-0.70kg Q100LP-1.22kg (Weight Above Include QZ24) |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.80mA |
ㆍVarious mounting options are available
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
